Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer

Hefei Youshi Optic-electronic Technology Co,. Ltd
Contact Now

Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer

Brand Name : Coreprogram

Model Number : BDX1280-2

Place of Origin : Hefei, Anhui, China

MOQ : 1 set

Price : Negotiable

Supply Ability : 1000 sets per year

Delivery Time : 15 working days

Packaging Details : Wooden Box

Payment Terms : L/C, T/T

Capacity(Kg/h) : 400 - 600

Carryover(bad:good) : ≥54:1

Power(Kw) : 8.2

HS CODE : 84371010

Size(mm) : 3864*2994*2524

Weight(Kg) : 2560

Contact Now

Intelligent Belt-Type Color Shape Selection Red Dry Chili Sorting Machine

Advantages Of Coreprogram :

1. Efficient double-layer for second-selection, single layer is optional.
     We provide slow and fast series, infrared series, four-view series single and
     double layer color sorters to meet the needs of customers at different levels.
2. Meet customer needs
    For special materials such as large volume, irregular, easily broken, high humidity,
    strong corrosiveness, high impurity rate, multiple colors, etc.
3. Intelligent cleaning design
   One lens with one brush, and multiple dust removal devices, blow dust to remove
   floatinglight objects without contact, reduce the interference of dust on the lens capture,
   and improve the accuracy of recognition.
4. Suitable for dry and wet chilli sorting .

Technical Parameters:

Model Layers Number Voltage
(V/Hz)
Power
(Kw)
Sorting Accuracy(%) Capacity
(Kg/h)
Carryover
Ratio
Dimension(mm)
(L*W*H)
Weight
(Kg)
BDX640-1 1 220/50 2.9 >99.9% 100-200 >10:1 3380x2560x1720 1100
BDX640-2 2 220/50 3.4 >99.9% 150-250 >10:1 3830x2560x2530 2100
BDX1280-1 1 220/50 4.7 >99.9% 200-400 >10:1 3380x3050x1720 1312
BDX1280-2 2 220/50 8.2 >99.9% 300-500 >10:1 3830x3050x2530 2560
BDX1600-2 2 220/50 8.75 >99.9% 400-600 >10:1 5300x3750x3200 2765
BDX1920-1 1 220/50 5.85 >99.9% 400-600 >10:1 3380x3840x1720 1920
BDX1920-2 2 220/50 9.5 >99.9% 500-700 >10:1 3830x3840x2530 3765

Note: The above parameters take facing heaven pepper with 20% impurities ratio as an

          example.Due to different raw materials and different impurities ratio , parameters
          will vary​ to some extent ,which are references for you choosing a suitable model.
Working Schematic:
Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer

Sorting Case:

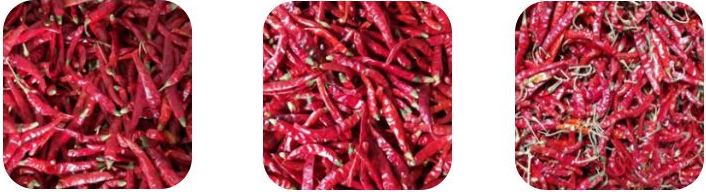

                                  Example Of Dry Chili Stem Sorting

          Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer
                           Raw Material                                     Accepted                                  Rejected

                                      Example Of Fresh Chili Sorting

               Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer

                 Raw Material                                Accepted                                     Rejected

                                    Example Of Chili Flakes Sorting

         Shape Selection Chilli Color Separator Machine 400 - 600Kg/H 8.2kw Single / Double Layer

                        Raw Material                                 Accepted                                        Rejected

Packaging Details:
   Dedicated wooden cases with PE plastic bag.
   Package size will depend on each model size.

Delivery Detail:
   Within 15 working days after received deposit.
